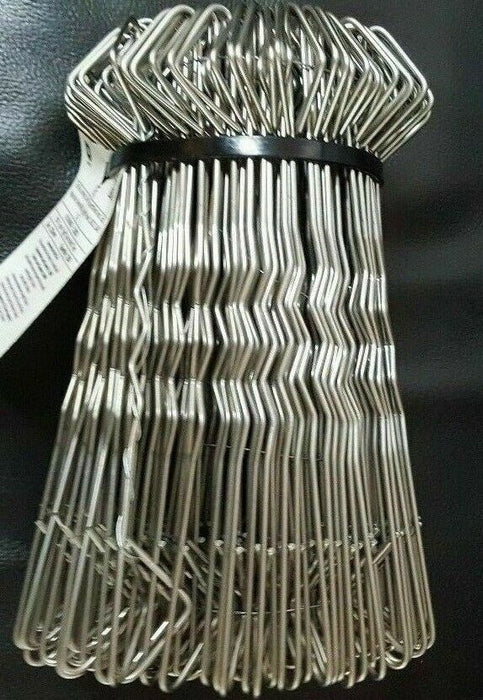

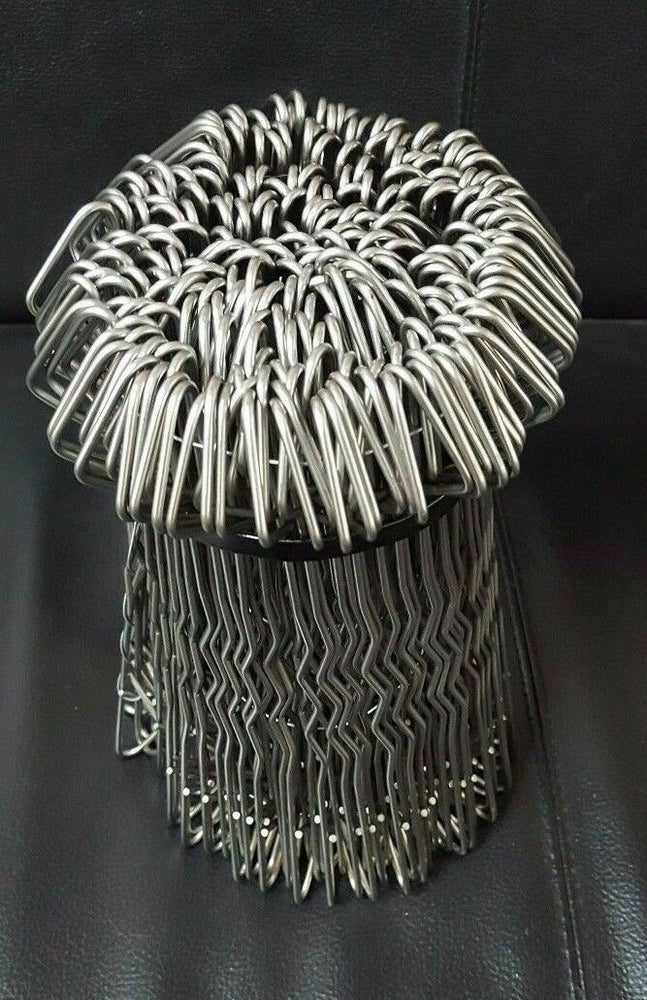

TecTies Light Duty Wall Ties 225 mm, 250 Pieces Stainless Steel TT4 Type 4 Symmetrical Wall Ties. For connecting two leaves in a cavity wall.
Compressive load capacity : 350N
Tensile Load Capacity : 1040N
Load capacity values are given for ties with : overall 225mm lenght x cavity width 100mm
minimum embedment length 50mm
minimum cover to face of the wall 40mm minimum
mortar joint thickness 10mm
Displacement at 1/3 load capacity :in compression 0.19mm in tension 0.50mm
Failure mode in compression bending of tie in tension straightening of tie.
Water shedding capacity :
resistant Durability : material/coating reference 3 & steel grade 1.4031
